PAVING BREAKER

  • TPB-30
  • TPB-40
  • TPB-40SV
  • TPB-501SV
  • TPB-60
  • TPB-73
  • TPB-90

Toku is the Japanese manufacturer having over 80 years experience on pneumatic tool and will keep best efforts to supply best performance tool with high productivity and durability into worldwide construction market.

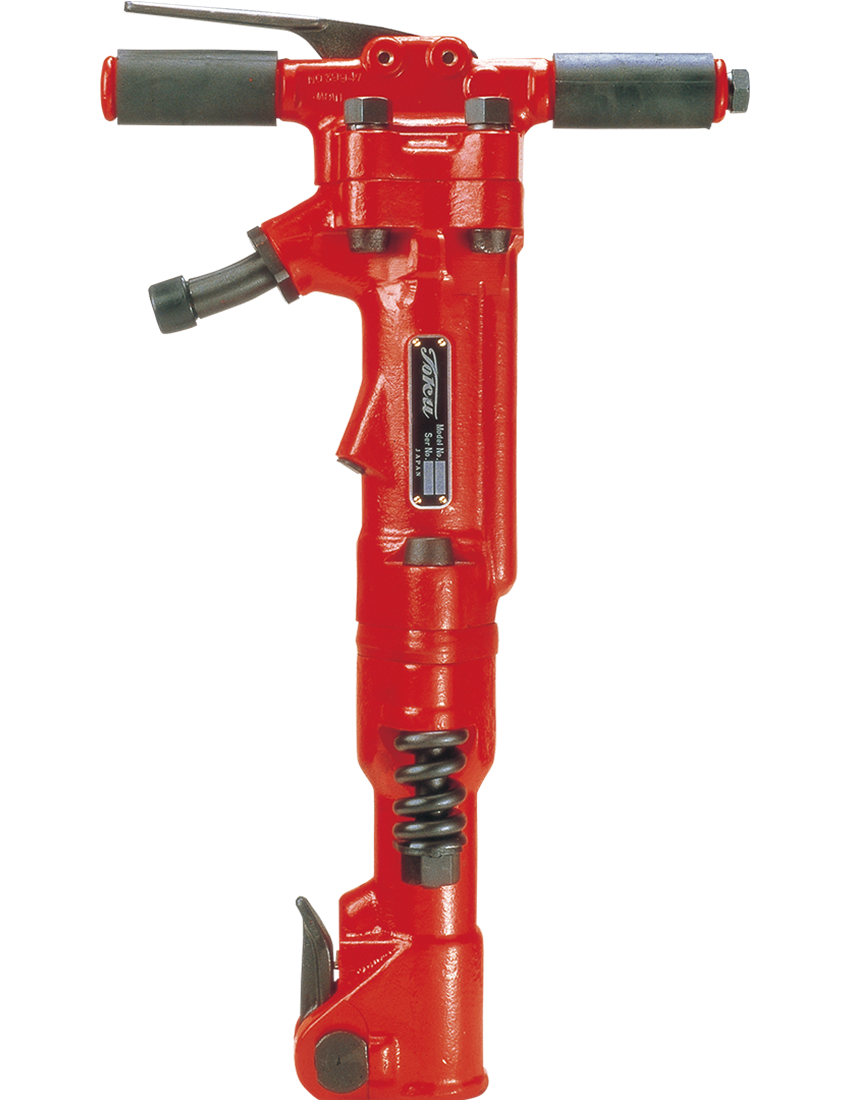

hydraulic breaker image

Feature

Toku paving breakers are used in road construction and building foundation work site and used to break high-strength concrete.

  • High Durability Long Life
  • Alloy steel forged parts provide maximum durability.
  • Original front head design for high durability.
  • Removable bushing to protect wear of front head.
  • Font head shock absorbers (except TPB-30, 40 and 40SV)
  • Ergonomic Series Available
  • Anti-vibration handle is available for workers healthcare. (TPB-40SV and TPB-501SV)
  • Optional muffler is available on request.
  • Functions
  • Forged latch retainer for quick chisel change.
  • 4 bolts handle type for low running cost

Specification

MODEL Piston
Diameter
Piston
Stroke
Blow
Per Min.
Net
Weight
Overall
Length
Air
Consumption
Hose
Size
Shank
Size
Air
Inlet
mm mm b.p.m. kg lb mm m3/min cfm mm inch PT
TPB-30 44.45 85 1550 15.0 33 564 1.4 49 12.7 7/8x3-1/4 or 1x4-1/4 1/2
TPB-40 44 146 1100 18.0 40 660 1.6 57 19 1x4-1/4 3/4
TPB-40SV 44 146 1100 19.5 43 654 1.6 57 19 1x4-1/4 3/4
TPB501SV 50 156 1250 28 62 714 1.4 49 19 1-1/8x6 or 1-1/4x6 3/4
TPB-60 57.15 100 1400 30 66 645 1.7 58 19 1-1/8x6 or 1-1/4x6 3/4
TPB-73 57.15 144 1200 31 68 690 1.8 64 19 1-1/8x6 or 1-1/4x6 3/4
TPB-90 66.6 152 1250 42 93 725 2.2 78 19 1-1/8x6 or 1-1/4x6 3/4

Note

  • Working pressure: 0.6MPa.
