CORDLESS IMPACT WRENCH 1/2"SQ SIZE
NEW!!
TOKU cordless tools are launched with the same quality performance as our air tools. The MCI High-power cordless impact wrench delivers reliability, safety and durability for professional fastening work.
FEATURE
MCI-160PA1/2"SQ Cordless Impact Wrench
click to enlarge
Feature
- 2 auto stop mode is available to prevent over-tightening.
Mode 1: forward only
Mode 2: forward and reverse - Maximum torque:
Forward: 420Nm
Reverse: 640Nm - Light-weight: 1.9kg
- Equipped with LED light
- 2 (5.0Ah) batteries included

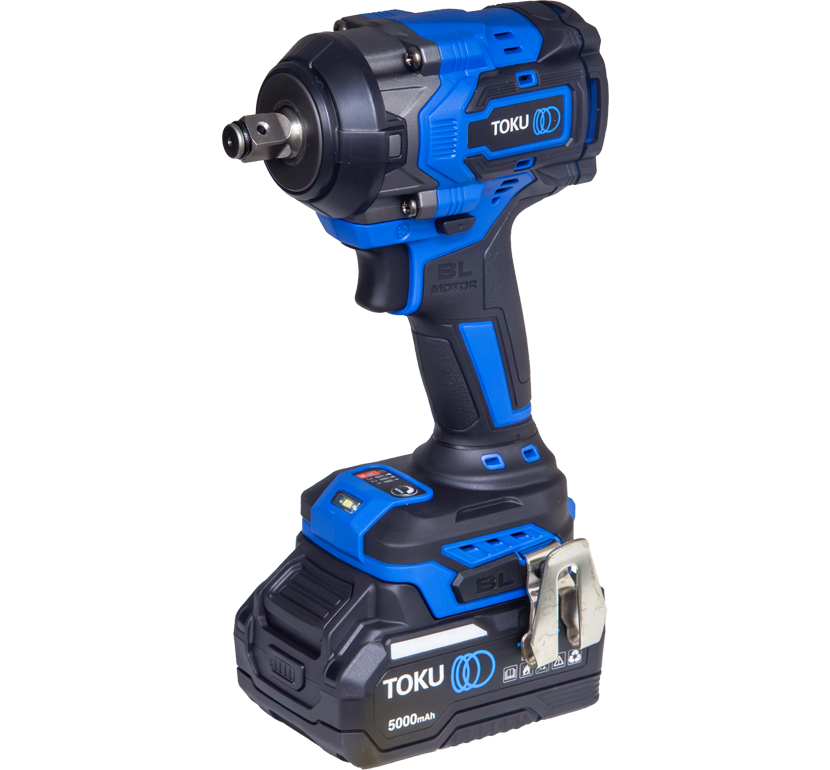

MCI-170PA1/2”SQ Impact Wrench
click to enlarge
Feature
- 3 auto stop mode is available to prevent over-tightening.
Mode 1 2: forward only
Mode 3: forward and reverse - Maximum torque:
Forward: 550Nm
Reverse: 850Nm - Light-weight: 2.3kg
- Equipped with LED light
- 2 (5.0Ah) batteries included
SPECIFICATION
| MODEL | MCI-160PA | MCI-170PA | |
| SQ Size | 1/2" | 1/2" | |
| Bolt Size | Standard Bolt | M8 to M20 | M10 to M22 |
| High Strength Bolt | M10 to M16 | M10 to M18 | |
| Max Torque | Mode 1 | 230Nm | 280Nm |
| Mode 2 | 420Nm | 400Nm | |
| Mode 3 | - | 550Nm | |
| Reverse Mode (Max) | 640Nm | 850Nm | |
| RPM | Mode 1 | 0 to 1,850 | 0 to 900 |
| Mode 2 | 0 to 2,450 | 0 to 1,500 | |
| Mode 3 | - | 0 to 2,600 | |
| Bolt Size for Auto Stop Mode | Mode 1: M8 | Mode 1: M8 | |
| Mode 2: M12 | Mode 2: M12 | ||
| - | Mode 3: M14 | ||
| Weight (Incl.Battery) | 1.9kg | 2.3kg | |
| Battery Voltage/Current | 18V/4A | 18V/4A | |
| Capacity | 5 Ah | 5 Ah | |
| Weight for Battery | 0.8kg | 0.8kg | |
Note
- 2 batteries and 1 charger included.
- Charging time: approx. 80 minutes
