TCS SERIES AIR HOIST
250kg - 980kg Capacity
- TCS-250C
- TCS-250PE
- TCS-500C

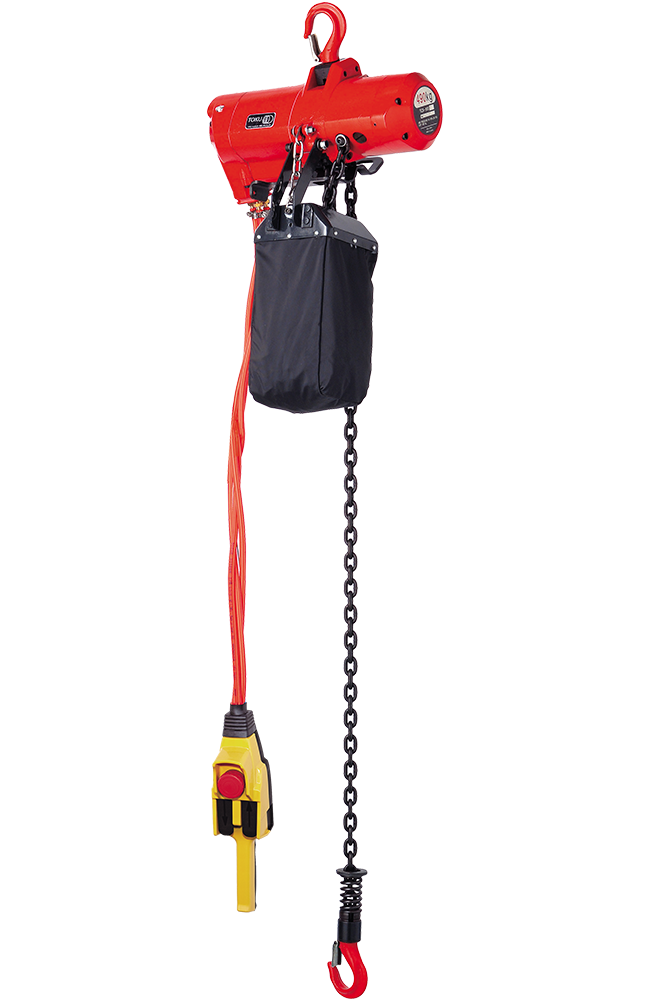

- TCS-500PE
- TCS-1000C2
- TCS-1000P2E
Features
- Extreme High Speed Air Hoist!
- ▸ Classification (ISO): M4
- ▸ Precise variable speed control
- ▸ Lubrication free vane (option)
- ▸ Compact design
- ▸ Light-weight aluminum housing
- ▸ Failsafe automatic internal disc brake
- ▸ Over-traveling limiter
- ▸ Alloy safety swivel hooks with safety catch
Specification
| MODEL | Lifting Capacity (kg) |
No. of Chain Falls |
Lifting Speed (m/min) |
Lifting Air Consumption (m3/min) |
Lowering Speed (m/min) |
Lowering Air Consumption (m3/min) |
Weight without Chain (kg) |
Minimum Hook Distance (mm) |
Chain Dimension (mm) |
Hose Size (mm) |
| TCS-250C | 250 | 1 | 34.0 | 1.7 | 63.0 | 2.0 | 17 | 414 | 6.3x19 | 12.7 |
| TCS-250PE | 250 | 1 | 34.0 | 1.7 | 63.0 | 2.0 | 18 | 414 | 6.3x19 | 12.7 |
| TCS-500C | 490 | 1 | 17.0 | 1.7 | 34.0 | 2.0 | 17 | 414 | 6.3x19 | 12.7 |
| TCS-500PE | 490 | 1 | 17.0 | 1.7 | 34.0 | 2.0 | 18 | 414 | 6.3x19 | 12.7 |
| TCS-1000C2 | 990 | 2 | 8.5 | 1.7 | 17.0 | 2.0 | 20 | 456 | 6.3x19 | 12.7 |
| TCS-1000P2E | 990 | 2 | 8.5 | 1.7 | 17.0 | 2.0 | 21 | 456 | 6.3x19 | 12.7 |
Note
- Operating air pressure: 0.6MPa
