TOKU

TOKU PNEUMATIC CO.,LTD.

TMH SERIES
LARGE CAPACITY
AIR HOIST

9000kg - 50000kg Capacity

  • TMH-9000/3
  • TMH-12000/4
  • TMH-15000/5
  • TMH-37.5T
  • TMH-45T
  • TMH-50T/4
Large capacity air hoist Image

Features

  • ▸ TMH series air hoist with HIGHEST LEVEL LIFTING SPEED in the market
  • ▸ Robust 3 step planetary gear box
  • ▸ Failsafe automatic internal disc brake
  • ▸ Mechanical upper & lower switches
  • ▸ Cast steel housing
  • ▸ Alloy safety swivel hooks with safety catch
  • ▸ Automatic load limiter

Available Options

  • ▸ Marine specification
  • ▸ Special paint systems
  • ▸ Corrosion protection
  • ▸ Chain collectors (galvanized or stainless steel)
  • ▸ Air service units
  • ▸ Festoon systems
  • ▸ Radio control
  • ▸ Corrosion protection

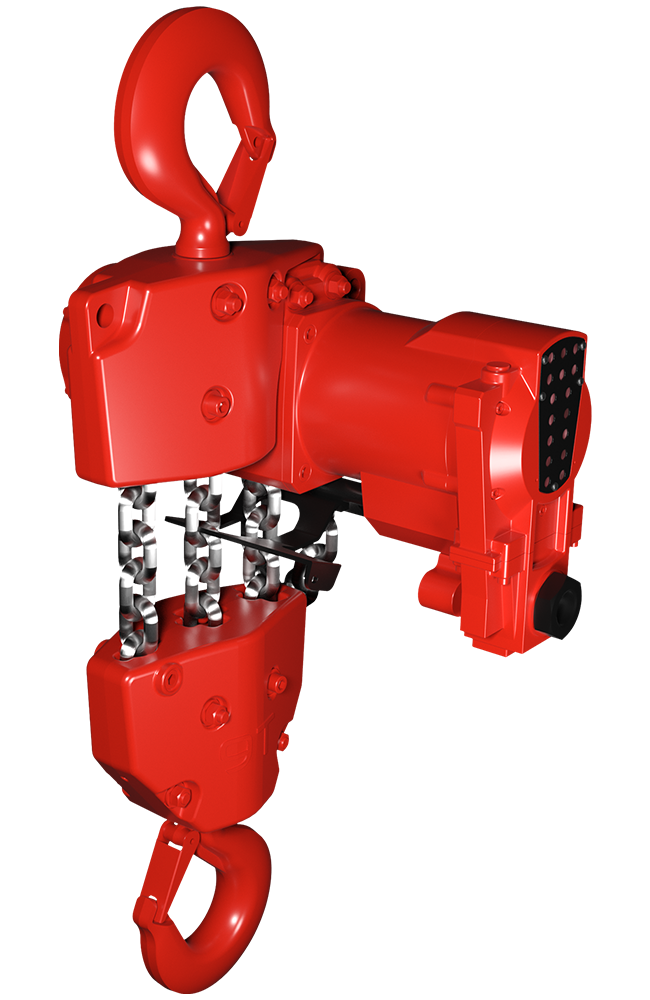

Image of TMH-9000/3 9 ton Capacity Air Hoist

Click to enlarge

TMH-9000/3
9 ton Capacity
Air Hoist Dimenstional Drawing

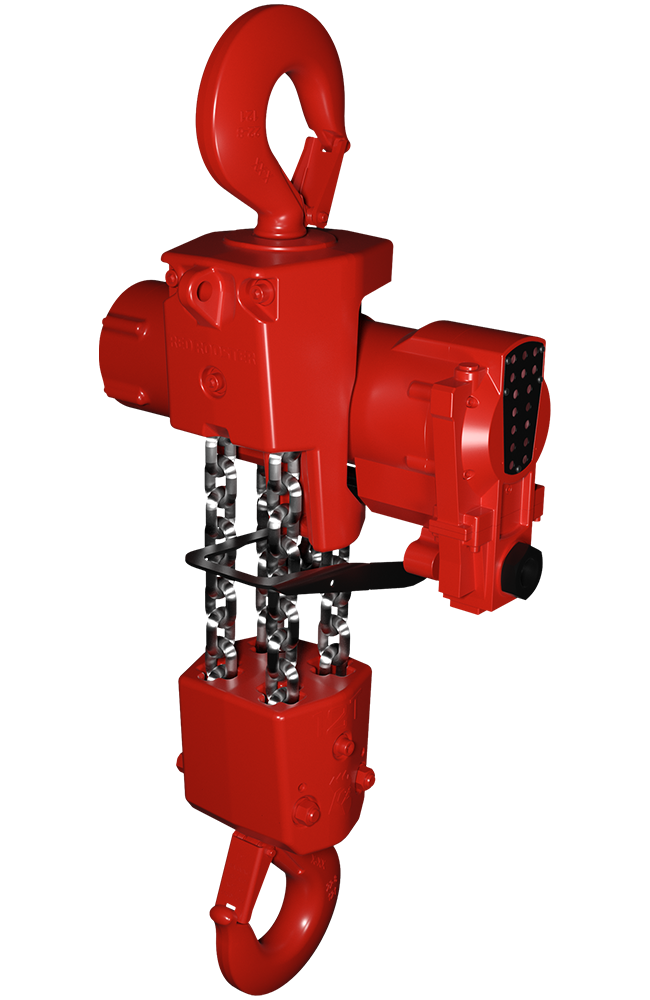

Image of TMH-12000/4 12 ton Capacity Air Hoist

Click to enlarge

TMH-12000/4
12 ton Capacity
Air Hoist Dimenstional Drawing

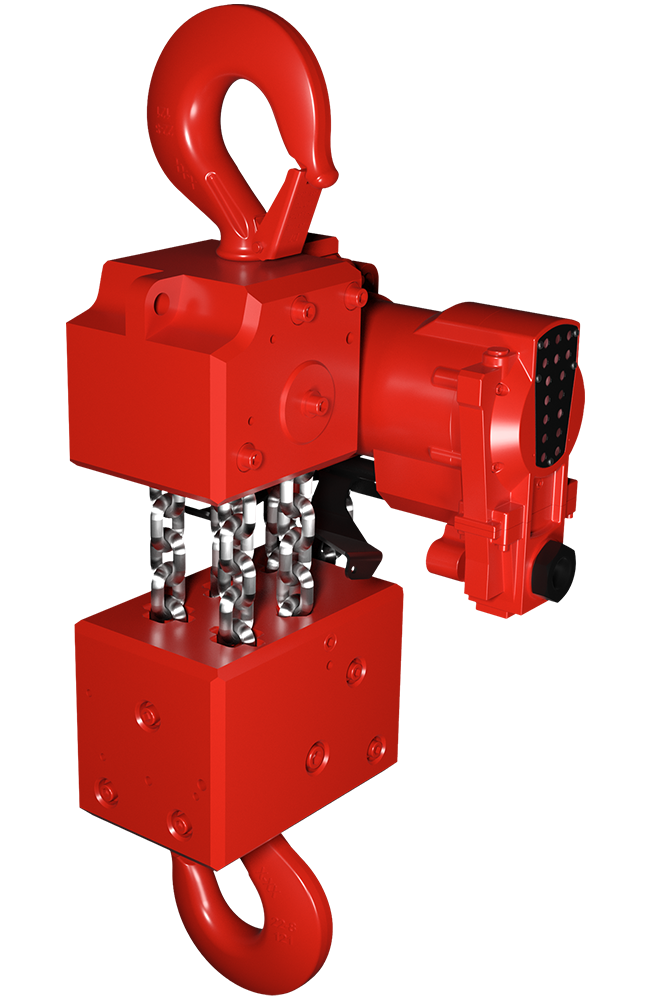

Image of TMH-15000/5 15 ton Capacity Air Hoist

Click to enlarge

TMH-15000/5
15 ton Capacity
Air Hoist Dimenstional Drawing

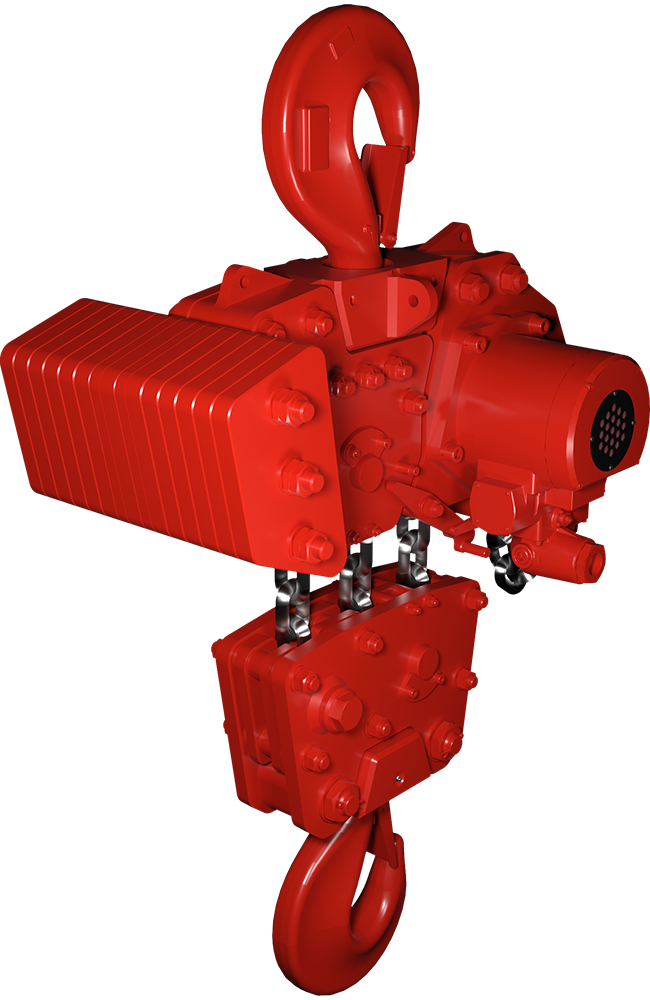

Image of TMH-37.5T 37.5 ton Capacity Air Hoist

Click to enlarge

TMH-37.5T
37.5 ton Capacity

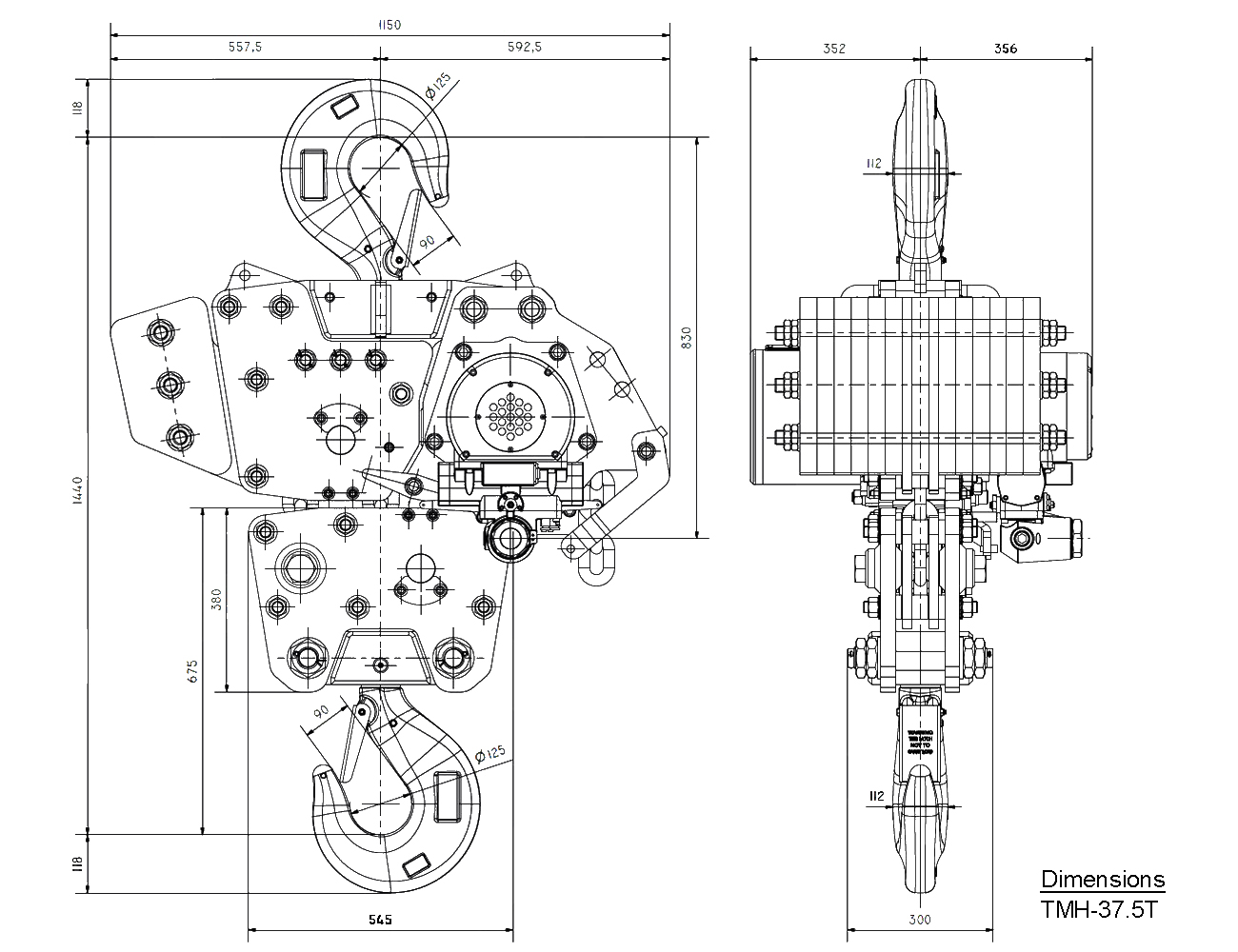

Air Hoist Dimenstional Drawing
Image of TMH-45T 45 ton Capacity<br>Air Hoist

Click to enlarge

TMH-45T
45 ton Capacity

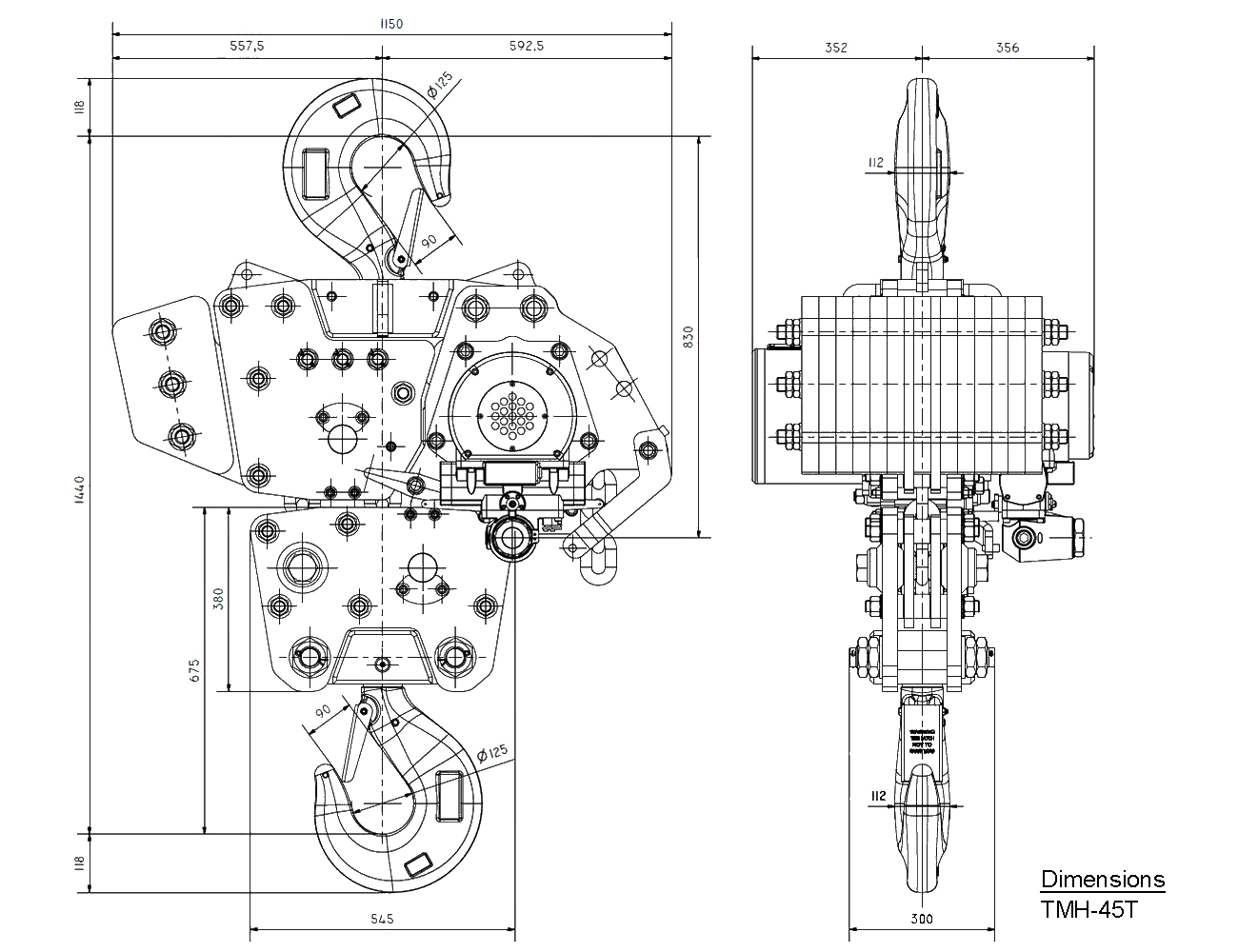

Air Hoist Dimenstional Drawing
Image of TMH-50T/4 50 ton Capacity Air Hoist

Click to enlarge

TMH-50T/4
50 ton Capacity
Air Hoist Dimenstional Drawing

Specification

MODEL Lifting
Capacity

(kg)		 No. of
Chain
Falls		 Lifting
Speed
(W/L)
(m/min)		 Lifting
Speed
(WO/L)
(m/min)		 Lowering
Speed
(W/L)
(m/min)		 Air
Consumption
Lifting
(m3/min)		 Air
Consumption
Lowering
(m3/min)		 Weight
(3M HOL)

(kg)
TMH-9000/3 9000 3 1.8 3.6 3.4 3.36 4.08 170
TMH-12000/4 12000 4 1.35 2.7 2.55 3.36 4.08 190
TMH-15000/5 15000 5 1.08 2.16 2.04 3.36 4.08 280
TMH-37.5T 37500 3 0.9 1.8 2.0 6.48 10.8 1300
TMH-45T 45000 3 0.65 1.8 1.8 6.48 9.96 1300
TMH-50T/4 50000 4 0.7 1.3 1.5 6.48 10.8 1800
  • Operating air pressure is from 0.4 to 0.6MPa (from 0.5 to 0.6MPa for TMH-45T)
