AIR WINCH

300-2000kg Capacity

  • TAW-300B
  • TAW-500
  • TAW-1000
  • TAW-1500A
  • TAW-2000

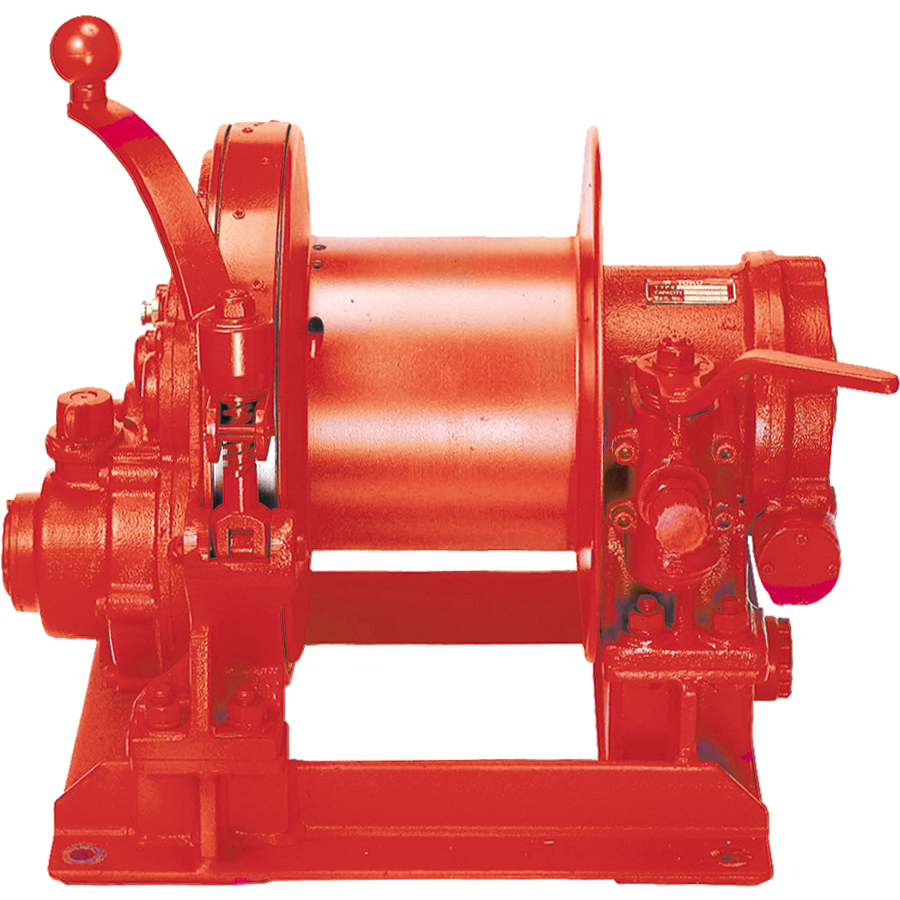

Air Winch Image

Features

  • Light-weight & compact.
  • Quick engage clutch.
  • Dual brake system: failsafe brake & manual band brake.
  • Durable cast iron housing.

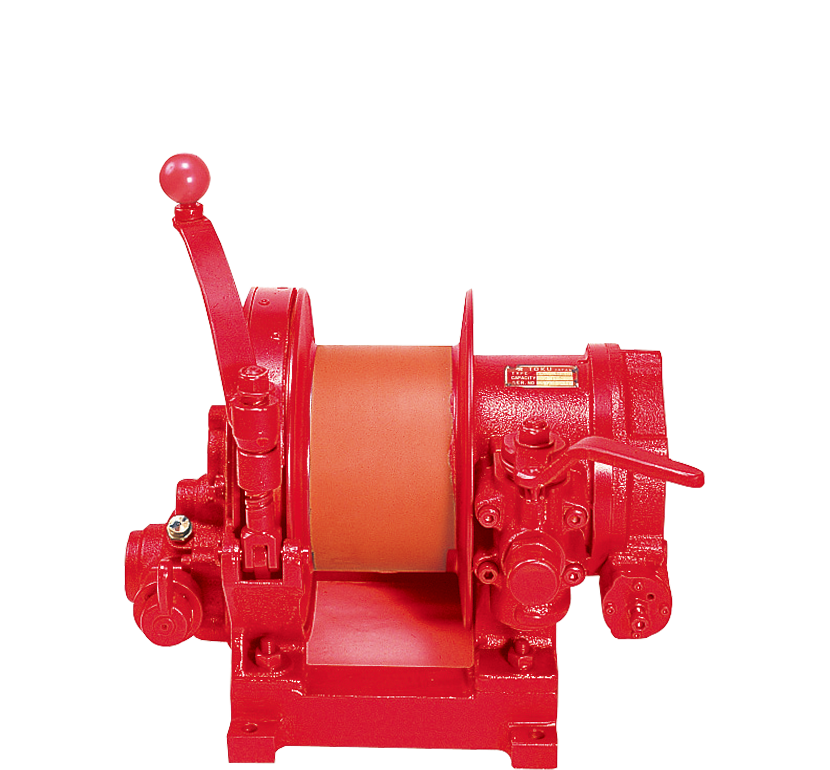

TAW-300B
300kg Capacity Air Winch

TAW-300B 300kg Capacity Air Winch

Click to enlarge

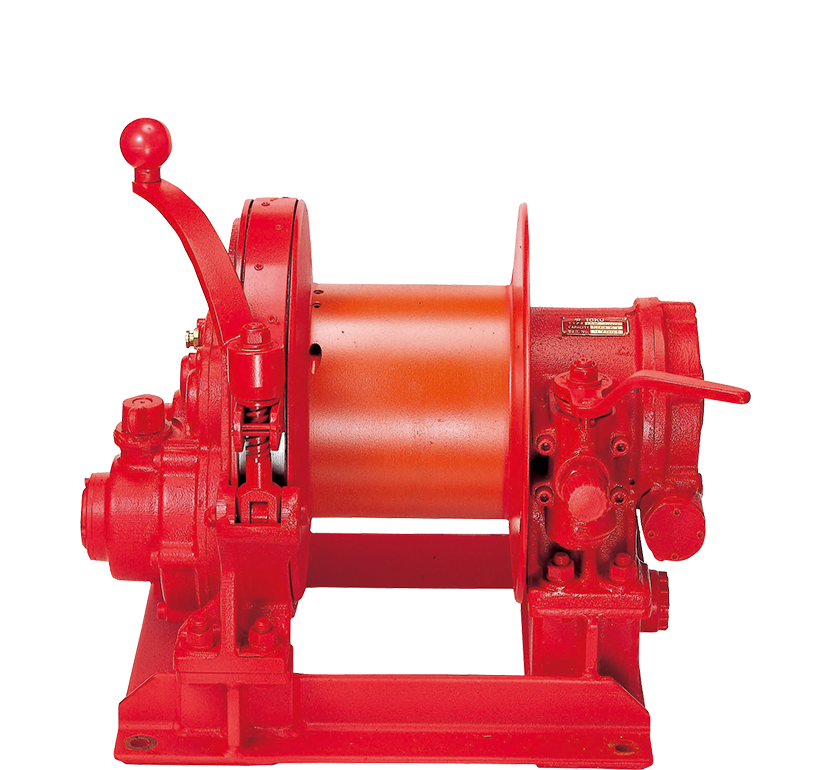

TAW-500
500kg Capacity Air Winch

TAW-500 500kg Capacity Air Winch

Click to enlarge

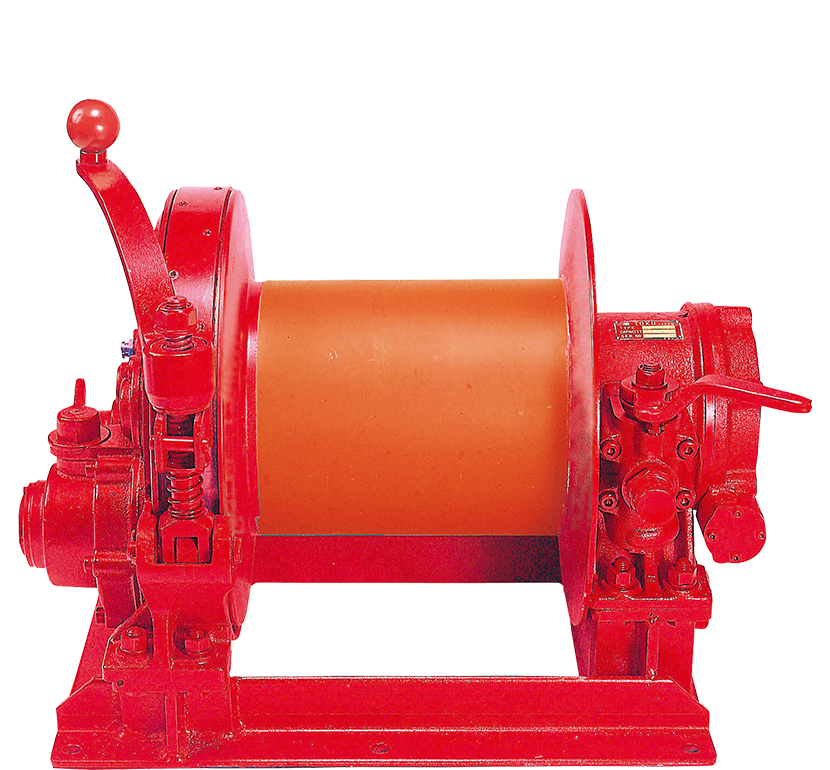

TAW-1000
1000kg Capacity Air Winch

TAW-1000 1000kg Capacity Air Winch

Click to enlarge

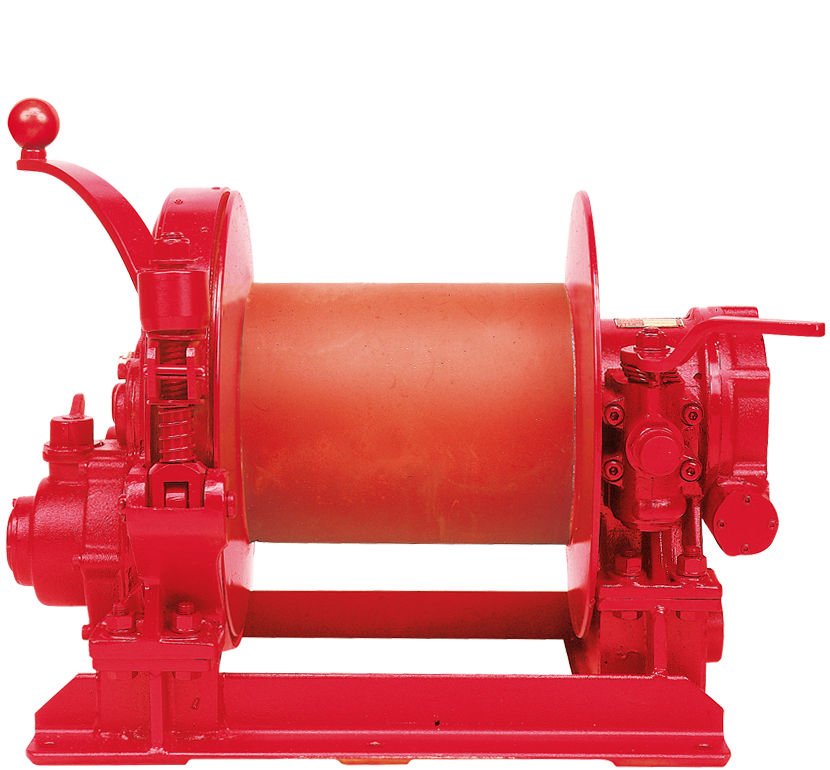

TAW-1500A
1500kg Capacity Air Winch

TAW-1500A 1500kg Capacity Air Winch

Click to enlarge

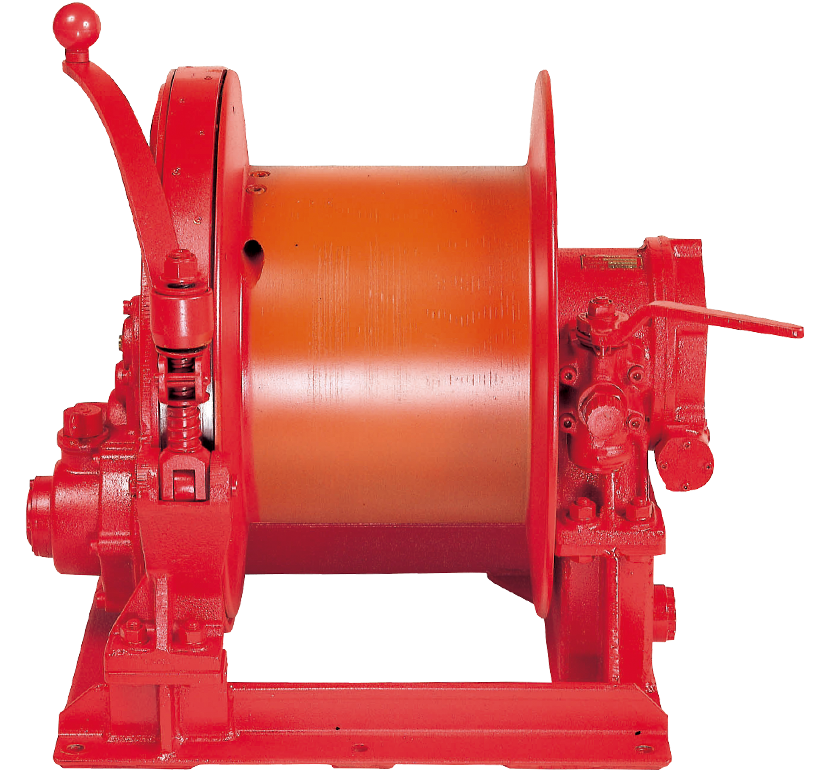

TAW-2000
2000kg Capacity Air Winch

TAW-2000 2000kg Capacity Air Winch

Click to enlarge

Specification

MODEL Lifting
Capacity
Lifting
Speed
Air
Consumption
Wire Rope
Dimension
Weight
w/o Rope
Hose
Size
Mounting
Bolt
kg m/min m3/min mm x m kg mm mm
TAW-300B 300 27.0 3.4 6 x 37 42 19 M10 x 4
TAW-500 500 20.0 3.4 8 x 61 75 19 M12 x 4
TAW-1000 1000 11.5 3.9 10 x 91 90 19 M12 x 6
TAW-1500A 1500 8.5 4.1 12 x 60 90 19 M12 x 6
TAW-2000 2000 5.7 4.9 16 x 45 130 19 M12 x 6

Note

  • Operating air pressure: from 0.4 to 0.6MPa.
